Description

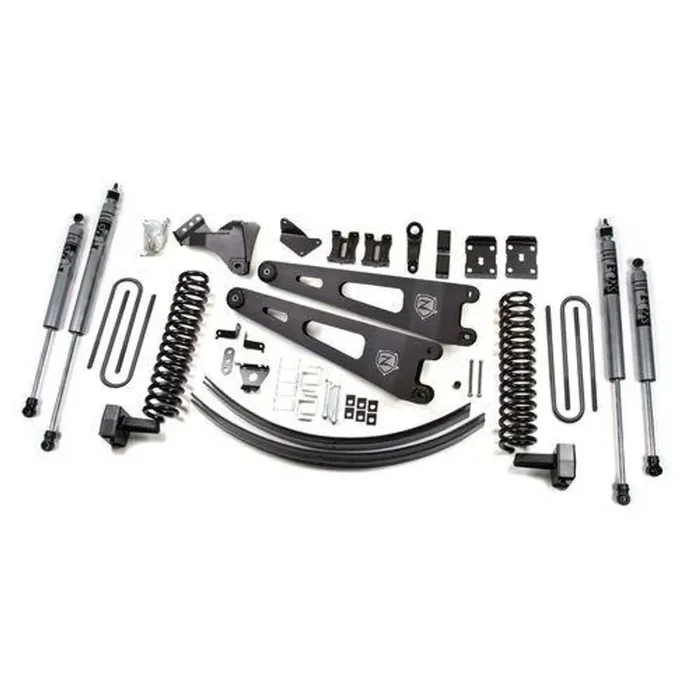

Lift your Super Duty into a class of it’s own with this 6 Inch radius arm lift kit for an attention grabbing, smooth riding, complete, and affordable system. You’ll clear huge 37 Inch tires for the look and performance you want from your Diesel 4WD 2011 – 2016 Ford F-250/F-350.
Quick Specs:
- Front Lift Height 6 Inch
- Rear Lift Height 4 Inch
Shocks:
- FOX 2.0 Adventure Series
- 2-inch diameter steel body
- Internal floating piston (IFP) monotube design
- Large 5/8-inch hard chrome plated heat-treated alloy steel shaft
- Race-developed high-flow piston design
- Application-specific valving to maximize performance
- Long-lasting clear anodized finish
Features:
- Brake line relocation brackets allow re-use of factory brake lines.
- Bump stop extensions properly limit up-travel, protecting your vehicle.
- Dual rear Add-A-Leaf Kit provides additional lift and improves weight capacity.
- Heavy-duty radius arms improve strength, allow additional tire clearance and increase ground clearance over radius arm drop kits.
- High-strength, 1/4 Inch steel radius arms correct caster, improve tire clearance, and maximize ground clearance.
- Rear lift block and longer U-bolts for easy installation and level stance.
- Steering components included to ensure smooth post-installation operation of steering system and factory-consistent vehicle handling characteristics.
- Sway bar relocation brackets maintain operating angle for reduced body roll.
Kit Components:
- FOX98450750 (x2)
- FOX98450763 (x2)
- ZONF1308
- ZONF1601 (x2)
- ZONF1604
- ZONF1613 (x2)
- ZONF6209
Installation Instructions
Reviews
There are no reviews yet.
